What is Buffer Amplifier?

When two circuits are linked, there is a possibility of signal loss or distortion arising from impedance mismatches in both circuits. Likewise, loading effects may occur due to disparate voltage levels or when one circuit draws excessive current from the other. To address these issues, the buffer amplifier comes into play.



The buffer amplifier stands as a fundamental element in contemporary electronics, particularly in signal-processing applications. This comprehensive guide aims to delve into the intricacies of the buffer amplifier, providing detailed insights into its operational principles and applications.



Understanding the Buffer Amplifier



A buffer amplifier, commonly referred to as a buffer, facilitates electrical impedance transformation from one circuit to another. Its primary function is to shield the signal source from any impact imposed by the current or voltage introduced by the load. The aim is to preserve signal integrity during the transition of a signal between circuits.



In straightforward terms, a buffer amplifier is a compact signal processing circuit designed to mitigate power loss and signal distortion. This becomes particularly crucial when a high-impedance signal source is directly linked to a low-impedance load. By ensuring impedance matching, a buffer facilitates maximum power transfer and ensures the robust maintenance of the original waveform.



There exist two primary types of buffer amplifiers:



Voltage Buffer Amplifier



A voltage buffer amplifier transfers voltage from a circuit with high output impedance to a second circuit with low input impedance.

When a buffer amplifier is present between the two circuits, it prevents the second circuit from excessively burdening the first circuit and impacting its performance.

Without a voltage buffer, the output impedance of the first circuit interferes with the voltage of the second circuit. However, the use of a voltage buffer allows it to accept the input signal without significantly loading the source circuit and transmits it to the target circuit without a notable voltage drop. This ensures optimal signal integrity and mitigates the loading effect. An ideal voltage buffer exhibits zero output impedance and infinite input impedance.



Current Buffer Amplifier



A current buffer amplifier is a buffer type that conveys current from a circuit with low output impedance to a second circuit with high input impedance. Its purpose is to prevent the second circuit from unduly burdening the current of the first circuit, thereby safeguarding its operational stability.



In electronic circuits where current holds greater significance than voltage, a current buffer amplifier finds utility. It secures consistent current flow across circuits and mitigates the adverse effects of excessive current loading. An exemplary current buffer exhibits zero input impedance, essentially behaving as a short circuit, and boasts infinite output impedance, emulating an ideal current source.

The Operational Principle of Buffer Amplifier



The operational principle of the buffer amplifier revolves around impedance transformation. When the source circuit exhibits high impedance, it generates low current, rendering it more susceptible to distortions related to current when connected to a load circuit with low impedance. However, a buffer amplifier mitigates the drawn current due to its high input impedance while facilitating substantial current flow to the load through its low output impedance. In this manner, it upholds signal integrity.

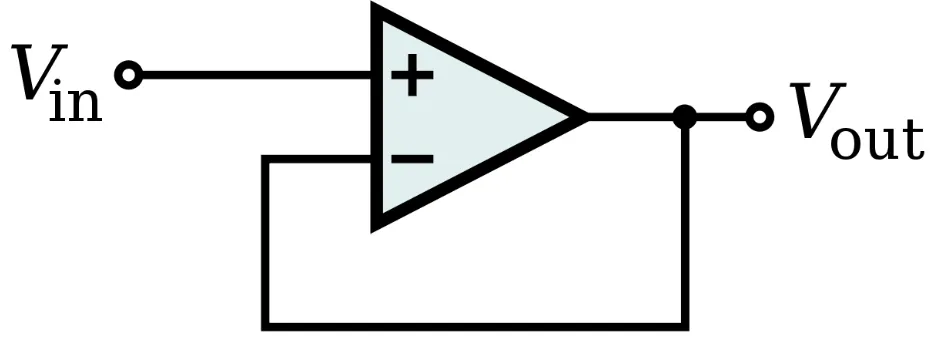

In the design of buffer amplifiers, the commonly employed approach is the "unity-gain voltage buffer." This design incorporates an operational amplifier (op-amp) as the central component. The op-amp, functioning as a high-gain differential amplifier, features two inputs (inverting and non-inverting) and a solitary output.



The Operating Principle of Buffer Amplifier



The common practice is to ground the inverting input terminal, while the non-inverting input terminal receives the input voltage. Leveraging its substantial open-loop gain, the operational amplifier (op-amp) adjusts its output voltage to nullify the voltage disparity between its inputs. Consequently, it aligns the output voltage with the input voltage, achieving unity gain or an amplification factor of 1.



Advantages of Buffer Amplifier:



The buffer amplifier stands as a pivotal element in signal-processing circuits, offering a diverse range of benefits. Some of the primary advantages it provides encompass the following:



Impedance Matching:



A key merit of the buffer amplifier lies in facilitating impedance matching between circuits.

Its elevated input impedance and diminished output impedance guarantee efficient signal transfer, regardless of the differing impedance levels in circuits.



Prevent Signal Distortion:



Signal distortion, arising from impedance mismatches in two circuits, is averted by the buffer amplifier, serving as a vital intermediary.

By bridging the impedance gaps, it eradicates concerns related to signal distortion.



Ensure Signal Isolation and Integrity:



The buffer amplifier proves highly effective in isolating input and output circuits.

In scenarios where components possess varying input and output impedances, the buffer ensures independent operation, contributing significantly to maintaining signal integrity.



Maximum Power Transfer:



The buffer amplifier's heightened input impedance and reduced output impedance play a crucial role in averting signal distortion and ensuring signal integrity.

This optimized condition results in the maximization of power transfer between circuits.



Applications of Buffer Amplifier:



Buffer amplifiers find application in various domains of IoT and electronic equipment, as outlined below:



Audio Systems:



Buffer amplifiers play a crucial role in audio systems, ensuring high-quality audio outputs.

They adeptly match the impedance between the source (microphones or musical instruments) and the speaker/recording equipment, thereby minimizing audio loss and preserving the integrity of the audio signal.



Voltage Regulation:



In voltage regulation circuits, buffer amplifiers are employed to guarantee a regulated and stable output voltage that closely tracks the input voltage.



Radio Frequency (RF) Circuits:



Buffer amplifiers are instrumental in RF circuits, serving to isolate different stages within the RF chain to prevent distortions.



Sensors:



Buffer amplifiers are utilized in various sensors, such as temperature or pressure sensors.

Their role involves converting the high-impedance output of sensors into a low-impedance signal, facilitating easy transmission without introducing distortion.



Data Acquisition Systems:



Within data acquisition systems, buffer amplifiers act as intermediaries between the data source and the measurement device.

This intermediary function ensures accurate readings without any undesirable interaction between the source and the measuring device.

In summary, buffer amplifiers exhibit a broad spectrum of applications, particularly in circuits where the avoidance of signal distortion and the maximization of power transfer are paramount.



Wrapping Up:



A buffer amplifier, despite its compact size, plays a significant role in electronic signal processing. The combination of high input impedance and low output impedance renders it highly effective in ensuring impedance match, signal integrity, minimized signal distortion, and optimized power transfer. This pivotal role has made it an indispensable component in the majority of electronic equipment involving signal processing.
