STM8S005K6T6C Microcontroller: Features, Apps & Datasheet Insights

32KB 32K x 8 FLASH STM8 8-Bit MCU STM8S Series STM8S005 32 Pin 16MHz 3.3V 32-LQFP

The STM8S005C6/K6 value line 8-bit microcontrollers possess 128 bytes of data EEPROM along with 32 Kbytes of Flash program memory. This write-up will present its features, applications and datasheet.

Description of STM8S005K6T6C Microcontroller

The STM8S005C6/K6 value line 8-bit microcontrollers provide 32 Kbytes of Flash program memory and 128 bytes of data EEPROM. Classified as medium-density devices in the STM8S microcontroller family reference manual (RM0016), these devices deliver performance, robustness, cost-effectiveness, and accelerated development cycles.

Device performance and robustness are maintained through a true data EEPROM supporting up to 100,000 write/erase cycles, advanced core, peripherals manufactured with state-of-the-art technology at a 16 MHz clock frequency, resilient I/Os, independent watchdogs with a separate clock source, and a clock security system.

Reduced system cost is achieved through high system integration with internal clock oscillators, watchdog, and brown-out reset. The common family product architecture, featuring a compatible pinout, memory map, and modular peripherals, allows for application scalability and shorter development cycles.

Operating within a 2.95 V to 5.5 V supply voltage range, these microcontrollers offer full documentation and a diverse selection of development tools.

Features of STM8S005K6T6C Microcontroller

• Expanded instruction set and a 16MHz maximum fCPU core
• Advanced STM8 core featuring a three-stage pipeline and Harvard architecture
• Internal low-power 128KHz RC and user-adjustable 16MHz RC
• Clock security system with a clock display
• Efficient low-power settings allowing individual peripheral clock shutdown
• Low-power, continuously operational power-on and power-down reset
• 32 interrupts and up to 37 external interrupts on 6 vectors accessible via a nested interrupt controller.
• 10-bit ADC, ± 1 LSB ADC, scan mode, and analog watchdog with up to 10 multiplexed channels
• 48-pin package with up to 38 I/Os, including 16 high-sink outputs
• Incorporated single-wire interface module enabling swift on-chip programming and discreet debugging

STM8S005K6T6C Pinout and pin descriptions

(HS) Elevated sink capability.

(T) Genuine open drain (P-buffer and protection diode to VDD not executed).

 alternate function remapping choice (If the same alternate function is displayed twice, it signifies an exclusive option, not a duplication of the function).

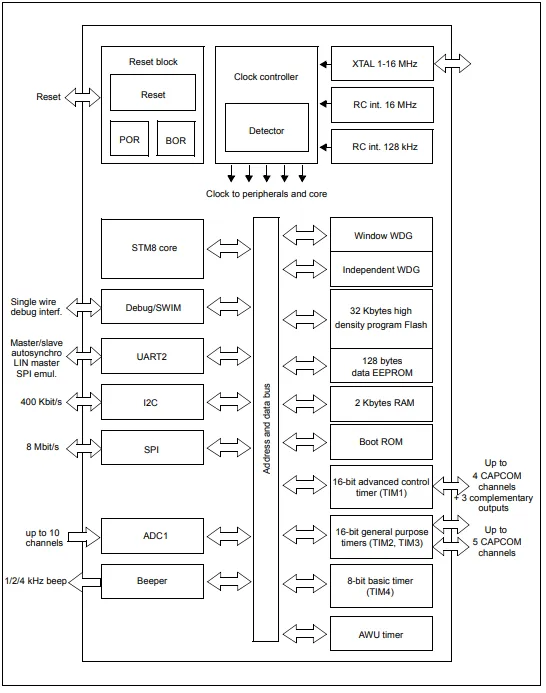

STM8S005K6T6C  Block diagram

STM8S005C6/K6 value line block diagram

STM8S005K6T6C Applications

The STM8S005K6T6C, an 8-bit microcontroller, finds applications in industrial and appliance environments. It offers benefits such as:

• Exceptional code density and performance
• Scalability in memory
• Reduced system costs and decreased external component requirements

STM8S005K6T6C Manufacturer

STMicroelectronics stands out as a global leader in developing products and solutions for smart mobility, extreme versatility, power and energy, IoT, and connectivity. This Franco-Italian company has operational and executive headquarters in Plan-les-Ouates, near Geneva, Switzerland. It specializes in the design, production, and distribution of semiconductor integrated circuits (ICs) for diverse applications, spanning industrial automation, motor control, security systems, automotive, consumer electronics, communication, computing, healthcare, and more. With one of the industry’s most comprehensive technology portfolios, its products feature prominently in cutting-edge electronic solutions. Backed by a network of manufacturing facilities, STMicroelectronics ensures a robust and flexible supply chain. Committed to environmental and social responsibility, the company prioritizes transparency in its communication with stakeholders.

Parts with Comparable Specifications

The three components on the right share specifications akin to those of STMicroelectronics & STM8S005K6T6C.

PDF Datasheet

Access PDFs containing datasheets and manufacturer documentation for STMicroelectronics STM8S005K6T6C.

Datasheets :

     STM8S005C6,K6
