What is a Vacuum Tube?

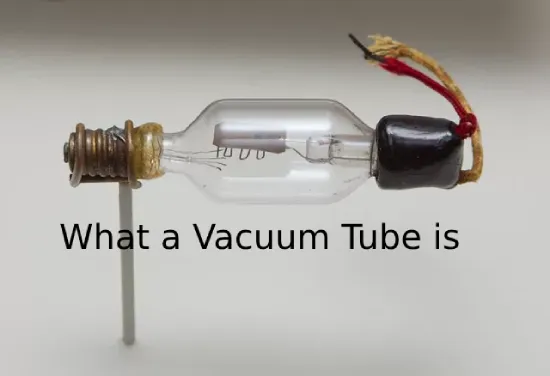

What is a Vacuum Tube?



A vacuum tube, also known as a valve in some regions, is an electronic device that utilizes a vacuum as insulation to prevent the flow of electric currents. By creating a vacuum inside the tube, it eliminates the presence of air or other materials that could conduct electricity. Vacuum tubes were widely employed in early computers due to their capability to amplify signals, a feature that was crucial for computing at that time.



During the earlier part of the 1900s, vacuum tubes found extensive applications in various fields including television, sound recording, industrial automation reproduction, radar equipment, radios, and telephone network systems. Serving as the precursor to modern transistors, vacuum tubes were employed creatively as electronically controlled rectifiers, oscillators, switches, and amplifiers, much like transistors are utilized today.



CRT (cathode ray tube) technology, a type of vacuum tube, was widely utilized in older computer monitors and televisions as the display screen. Originally conceived as a fundamental component for electronic devices, CRTs played a pivotal role in the evolution of both analog and digital computers throughout the first half of the twentieth century.



Functioning by generating electrons from a cathode and collecting them at an anode, the vacuum tube operated as a diode. Various types of vacuum tubes were available, categorized based on the number of electrodes they contained. Encased typically in glass, these electrodes, when sufficiently energized, could function as conductors within a vacuum, devoid of any air. This absence of air created a pathway for electrons akin to lightning traveling through the atmosphere, thus earning the vacuum tube its name due to the vacuum-like environment within.



Moreover, vacuum tubes generated substantial heat due to their high power requirements, necessitating a heating filament for electron production. This heat often caused rapid component degradation, leading to quick burnout. Vacuum tubes also required three distinct power sources based on their capacities and ratings to operate efficiently. However, advancements in vacuum tube technology resulted in reduced power consumption and smaller sizes over time, making them more cost-effective. Transistors, on the other hand, were effective primarily for low frequencies, requiring hundreds of them wired in parallel for high-frequency applications, leading to the need for heat sinks to manage the significant heat generated.



In contrast, an equivalent transmitter could operate with significantly less power and a single tube, with the option for forced air or water cooling. Vacuum tubes offer a unique speaker damping effect and distortion profile that cannot be replicated by solid-state amplifiers, making them more common in sound amplification applications. However, the transistor began to replace vacuum tubes in the 1950s due to their smaller size, making them more suitable for shrinking computing device sizes. As a result, vacuum tubes became less practical for use in smaller devices.



Nevertheless, vacuum tubes still find application in high-end audio equipment and large radio stations, particularly those operating at frequencies above 50 MHz and power levels exceeding 10,000 W. Thus, vacuum tube technology remains relevant in specific niches, indicating that it is not entirely obsolete.

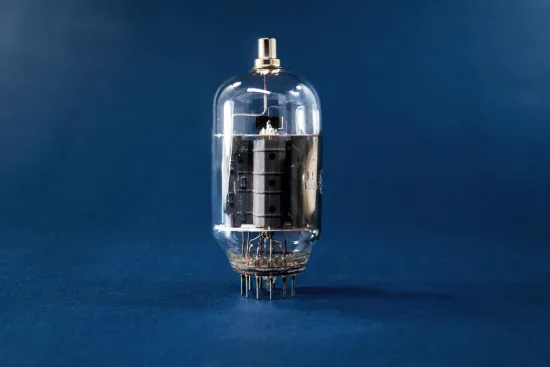

Different types of vacuum tubes



Different types of vacuum tubes serve as fascinating cleaning elements utilized for numerous purposes. Within the vacuum environment, these tubes typically feature both cathodes and anodes. Below are different types of vacuum tubes along with their operational principles:

1. Rectifier Vacuum Tubes: The rectifier, a fundamental type of vacuum tube, comprises two terminals—an anode and a cathode. Upon sufficient heating of the cathode, electrons are emitted from its surface due to the thermionic effect. If a higher electric potential is applied to the cathode compared to the anode, the cathode emits negatively charged electrons attracted towards the anode. Consequently, electric currents, driven by convection, flow towards positive charges.



2.Hence, the flow of electrons is conventionally depicted from the cathode to the anode. This convention arises from the equivalence between the current of negative charges traveling in one direction and the current of positive charges moving in the opposite direction. The image below illustrates an example of rectifier vacuum tubes.





Compared to the cathode, when the anode possesses a higher electric potential, the emitted electrons are attracted towards the anode.



3. Triode Vacuum Tubes: Another variant of vacuum tubes, the triode, facilitates the flow of electric currents from the high potential V+. However, to control this flow, a valve-like mechanism is necessary. In the triode, a third terminal, known as the grid, is positioned between the cathode and the anode.



Compared to the cathode, when the electric potential of the grid is lower, emitted electrons from the cathode experience repulsion, encountering obstacles in reaching the anode and completing the movement between terminals. If the grid carries a sufficiently negative charge, it impedes the flow of current, akin to closing a valve in a hydraulic circuit. An illustration below depicts an instance of a Triode vacuum tube.



3.Tetrode Vacuum Tubes: The introduction of tetrode vacuum tubes stemmed from the development of the triode. Featuring a fourth electrode known as the screen positioned between the anode and the grid, tetrodes aim to mitigate the capacitance generated by the proximity of the anode and the grid. In a triode, both the grid and the anode act as small capacitors due to their close proximity, potentially causing instability and oscillations. Compared to the cathode, if the screen operates at a higher voltage but lower than that of the anode, it diminishes the inherent capacitance between the grid and the anode by serving as an electrostatic screen between them. The image below illustrates an example of Tetrode vacuum tubes.



At the anode, a portion of the output signal is fed to the screen, configuring it to operate in an ultra-linear mode. Compared to the cathode, the screen maintains a positive charge in a tetrode. As a result, some of the electrons emitted from the cathode, attracted by the screen, move towards the anode, leading to a reduced current flow through the screen. This phenomenon is harnessed when configuring vacuum tubes to operate in ultra-linear mode or distributed load. Instead of applying a fixed voltage to the screen, this configuration is achieved by feeding back a percentage of the output signal from the anode.



The required percentage of the anode output signal is supplied to the screen by connecting it to a tap from the output transformer. The current through the screen provides a form of negative feedback, resulting in minimal distortion when the appropriate percentage of the anode signal is applied, albeit at the cost of reduced power efficiency.



The specific percentage required is determined by the characteristics of the electronic vacuum tubes being used. Typically, this percentage is set around 43% in most available designs of power amplifiers.



4.Pentode Vacuum Tubes: The pentode vacuum tube represents a refinement beyond tetrodes in vacuum tube technology. In this variant, as electrons emitted from the cathode reach the anode, there's a higher likelihood that they possess sufficient energy to trigger the emission of secondary electrons from the anode itself. However, the presence of secondary emission electrons reaching the grid can lead to instability and oscillations. To address this issue, pentodes incorporate a fifth electrode known as the suppressor. Typically, the suppressor is directly linked to the cathode either through explicit pin connections or internal connections within the vacuum tube. This suppressor electrode serves to prevent secondary emission electrons. The following image illustrates the appearance of a pentode vacuum tube.



What are the benefits of employing Vacuum Tubes in computers?



Vacuum tubes facilitate the amplification of electrical signals, resulting in rapid switching speeds and minimal delays, thereby enhancing overall computing performance. This renders them particularly advantageous for specific applications such as high-frequency radio, telecommunications technology, and video circuitry where swift operation is paramount. Despite the prevalence of chip-based computers today, vacuum tubes offer cost savings as they do not necessitate active cooling systems, making them a more economical choice compared to other computer components like transistors.



What are the drawbacks of utilizing Vacuum Tubes in computers?



The primary drawback of using vacuum tubes in computers is their size, which is larger than most modern computer components. This necessitates more space on circuit boards and machines, potentially limiting the number of components that can be accommodated. Additionally, their analog nature may pose challenges in designing software tailored specifically for them, restricting their applicability in contemporary computing environments heavily reliant on digital technologies. Furthermore, the relatively high cost of vacuum tubes compared to alternative components may render them financially impractical, especially considering the availability of cheaper alternatives, even if they offer slower performance.



What replaced Vacuum Tubes in computers?



The emergence of faster and more efficient transistors eventually supplanted vacuum tubes in computer technology. Transistors boasted significantly smaller sizes, facilitating seamless integration into computer circuitry and enabling the production of modern computers in compact forms akin to laptops or smartphones. Moreover, transistors consumed less energy compared to vacuum tubes while delivering comparable performance, establishing them as the preferred component for constructing high-speed computers with expanded storage capacities.



How are Vacuum Tubes still used today?



Although largely outdated, vacuum tubes still find applications in certain niche areas today. These include radio telescopes relying on very low noise amplifiers (VLNAs) or Radio Frequency (RF) amplifiers requiring high power gains, as well as audio amplifier circuits. Moreover, enthusiasts and hobbyists often employ vacuum tubes in projects such as constructing homemade radios. Some experts also speculate about the potential benefits of integrating vacuum tubes into quantum computing to enhance computational speed, although further research is necessary to determine its feasibility.



Are Vacuum Tubes better than transistors?



The superiority of vacuum tubes over transistors depends on the specific application. Audiophiles often favor vacuum tubes for audio amplifiers due to their perceived superior sound quality compared to transistors. However, in terms of computing speed and energy efficiency, transistors hold the advantage, as they offer higher performance gains with lower energy consumption. Transistors have become indispensable in modern-day computers, playing a pivotal role in their functionality and design.



What role do Vacuum Tubes play in modern day computers?



Vacuum tubes have largely become obsolete in modern-day computers, with integrated circuits taking their place due to their superior efficiency and precision in complex calculations. Although some hobbyists continue to experiment with vacuum tubes in their projects, their usage in mainstream computing is minimal, confined mainly to nostalgic endeavors or specialized applications requiring their unique properties, such as RF amplifiers for radio telescopes.



Is there a future for Vacuum Tubes?



There is potential for vacuum tubes in the future, particularly in quantum computing, a field that experts are actively exploring. Additionally, some audiophiles believe that vacuum tubes could maintain a niche market due to their unique sound characteristics, albeit on the fringes, as transistor-based audio equipment continues to advance.



What is the difference between a Vacuum Tube and a transistor?



The primary distinction between vacuum tubes and transistors lies in their information processing methods. Vacuum tubes utilize an oven-like heating process to generate electrons, whereas transistors rely on semiconductors and other components to produce current. Transistors excel in power efficiency and computing speed, relegating vacuum tubes mostly to nostalgic purposes in modern applications.



Are Vacuum Tubes still being produced?



Yes, albeit in reduced quantities compared to the past. Despite the dominance of transistors and integrated circuits, smaller companies continue to manufacture vacuum tubes. These tubes cater mainly to vintage electronics enthusiasts or hobbyists interested in unique projects such as building radios from scratch.



What are some common applications for Vacuum Tubes?



Vacuum tubes have diverse applications, including audio amplifiers, favored by many audiophiles for their sound quality. They are also used in RF amplifiers for radio telescopes requiring low noise amplification. Furthermore, there is speculation about their potential role in quantum computing, although substantial research is necessary before significant breakthroughs can be achieved.



How do Vacuum Tubes compare to transistors in reliability?



In terms of reliability, transistors outperform vacuum tubes due to their simpler operation and lower energy consumption. Unlike vacuum tubes, transistors do not rely on heating mechanisms and are less prone to failure over time. They require minimal maintenance and offer longer operational lifespans, making them a more reliable choice for electronic devices.



What advantages do Vacuum Tubes provide over transistors?



Vacuum tubes offer distinct advantages, particularly in audio amplification, where enthusiasts appreciate their unique sound quality characterized by warmth and richness. Some argue that vacuum tubes surpass transistor-based equipment in delivering an authentic audio experience. Additionally, while there have been attempts to utilize vacuum tubes in computer technology, their higher power consumption compared to transistors has hindered widespread adoption in this field.
